This page last updated on August 1, 2016.

Many thanks to the customers who have sent in photos of their models which we have used to illustrate the kits and plans in our line.

Complete Kit Description

All Complete Printwood and Laser Cut Kits contain printed plans, building instructions, printwood or laser cut wood and stripwood, plastic canopy, plastic prop with hardware, rubber motor, lightweight tissue, and decals. Some kits may have added parts as noted.

Note: Kits 9, 14, 17, and NS-1 are only sold direct, not through dealers.
Note: Items marked ** are in short supply. Check product news page for information.
Note: Items marked *** are temporarily out of stock.
Check product news page for information on future availability.
Note: Items marked #### are out of stock indefinitely or kit has been retired.
Check product news page for information on future availability.

TO ORDER USING PAYPAL GO TO THE ORDERING INSTRUCTIONS PAGE BY CLICKING HERE AND THEN CLICK ON THE PAYNOW BUTTON NEAR THE MIDDLE OF THE PAGE ABOVE THE PAYPAL LOGO.

Click to enlarge the images.

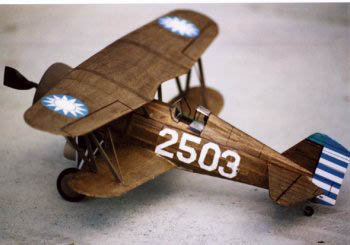

SK-1. BOEING F4B-2 (ARMY P-12C)

KIT # 1. BOEING F4B-2 (ARMY P-12C). 1929/1930 Navy (Army) fighter, predessor to the F4B-4. 1/24 scale, 15” span. 4 color decals in this kit. No canopy in this kit as the real plane did not have one.
KIT LIST PRICE $31.95

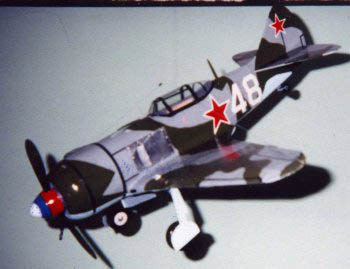

SK-2. LAVOCHKIN LA-5FN/LA-7

####KIT # 2. LAVOCHKIN LA-5FN/LA-7. Russian WW2 fighter. Build either version. 1/24 scale, 16-1/2 inch span, from plan #23. 2 color decals included.
KIT LIST PRICE $30.95--OUT OF STOCK INDEFINITELY.

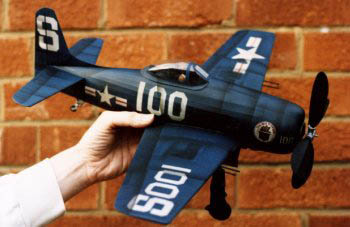

SK-3. GRUMMAN F8F-2 BEARCAT

####KIT # 3. GRUMMAN F8F-2 BEARCAT. U. S. Navy late WW2 and post war fighter plane. 1/24 scale, 18” span, from plan #37. 2 color decals for US Navy version.
KIT LIST PRICE $30.95--OUT OF STOCK INDEFINITELY

KIT # 5. CURTISS A-8/A-12 SHRIKE

KIT # 5. CURTISS A-8/A-12 SHRIKE. 1930’s single engine attack plane. 1/24 scale, 22” span. This kit builds either version. 4 color decals included.
KIT LIST PRICE $35.95---Back in stock.

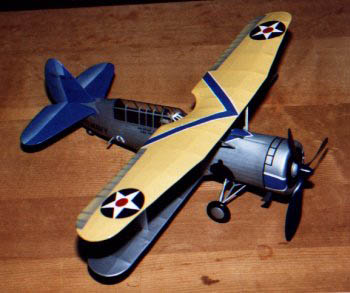

KIT # 7. CURTISS SBC-4 BI-PLANE HELLDIVER

####KIT # 7. CURTISS SBC-4 BI-PLANE HELLDIVER. Last US Navy combat bi- plane. Late 1930’s dive bomber relegated to non-combat duties in early WW2. From plan #25. 1/24 scale, 17” span. Includes a complete 4 color decal sheet for US Navy and Marine versions.
KIT LIST PRICE $33.95---ONE LEFT!!

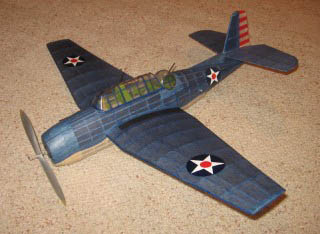

KIT # 8. DOUGLAS TBD-1 DEVASTATOR

####KIT # 8. DOUGLAS TBD-1 DEVASTATOR. Early WW2 US Navy torpedo bomber. 1/24 scale, 25” span, from plan # 56. 5 color decal sheet for several US Navy squadrons aircraft.
KIT LIST PRICE $37.95 ONLY ONE LEFT THEN OUT OF STOCK-INDEFINITELY!!!!!

KIT # 9. SUPERMARINE SPARROW II

KIT # 9. SUPERMARINE SPARROW II. Peanut scale kit. The Sparrow was a 1920’s parasol wing British lightplane built for a special competition. This peanut kit spans 13”. From plan #18. No canopy for this kit as the real plane did not have one. One color decals.
KIT LIST PRICE $16.00

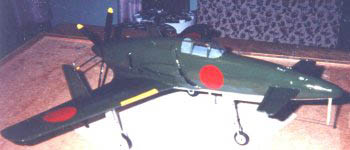

KIT # 10. KYUSHU J7W1 SHINDEN

KIT # 10. KYUSHU J7W1 SHINDEN. WW2 experimental Japanese canard fighter. 1/24 scale, 18-1/4” span. From plan #55. One color decals.
KIT LIST PRICE $31.95--OUT OF STOCK-INDEFINITELY!!!

KIT # 11. GRUMMAN F4F WILDCAT

####KIT # 11. GRUMMAN F4F WILDCAT. WW2 US Navy fighter plane, 1/24 scale, 19” span, from the Model Builder Book “Flying Scale Models of WW2” from the 1970’s. Contains the extra documentation, and 4 color decals for 3 different aircraft.
KIT LIST PRICE $32.95 --OUT OF STOCK INDEFINITELY

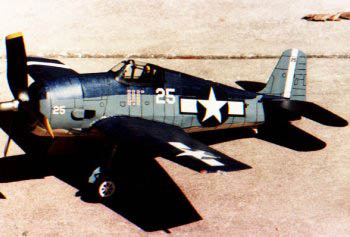

KIT # 12. GRUMMAN F6F HELLCAT

####KIT # 12. GRUMMAN F6F HELLCAT. WW2 US Navy fighter plane, 1/24 scale, 21.42” span, from the Model Builder Book “Flying Scale Models of WW2” from the 1970’s. 4 color decals included.
KIT LIST PRICE $32.95 OUT OF STOCK INDEFINITELY.

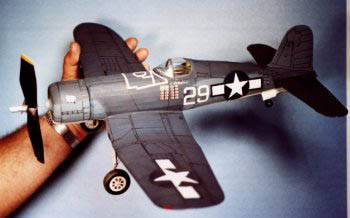

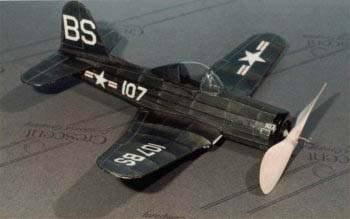

KIT # 13. VOUGHT F4U CORSAIR

####KIT # 13. VOUGHT F4U CORSAIR.WW2 US Navy and Marine fighter plane, 1/24 scale, 20.5” span, from the Model Builder Book “Flying Scale Models of WW2” from the 1970’s. Contains 4 color decals.
KIT LIST PRICE $32.95 OUT OF STOCK-INDEFINITELY

SK-12. GRUMMAN F6F HELLCATKIT # 14. RYAN FR-1 FIREBALL

***KIT # 14. RYAN FR-1 FIREBALL. Peanut scale kit. 13” wingspan. US Navy post WW2 fighter with a radial engine in the nose and a jet in the tail. 2 color decals included.
KIT LIST PRICE $18.00 OUT OF STOCK until November 2016.

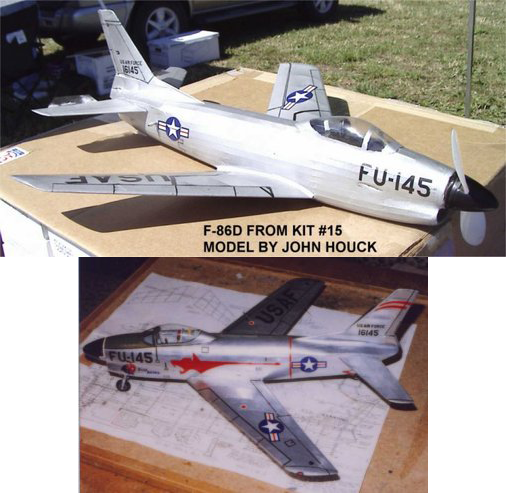

KIT # 15. NORTH AMERICAN F-86D SABRE JET

####KIT # 15. NORTH AMERICAN F-86D SABRE JET. The Sabre “Dog” version from the 1950’s in 1/24 scale, designed for rubber power. The radome nose makes it a natural for rubber power. Wingspan is 18.54”. Kit includes 4 color decals.
KIT LIST PRICE $32.95 OUT OF STOCK-INDEFINITELY

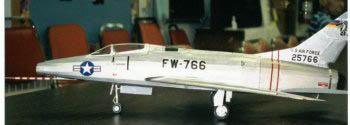

KIT # 16. NORTH AMERICAN F-100 SUPER SABRE JET

####KIT # 16. NORTH AMERICAN F-100 SUPER SABRE JET. Famous jet of the 1950’ and 1960’s. 1/24 scale, 19-3/8” span, designed for rubber power. Includes 4 color decals. Fly it with the prop provided, or whip fly it, or hand launch glider.
KIT LIST PRICE $32.95 OUT OF STOCK-INDEFINITELY

KIT # 17. THE HOMEBUILT LACEY M-10

####KIT # 17. THE HOMEBUILT LACEY M-10. Homebuilt lightplane. This kit was designed for the beginner who has built a Peck ROG or Delta Dart or other first model and wants to transition into a scale model. The kit spans 16” and can be built with either sheet balsa fuselage sides or as a stick and tissue model with the parts to build it either way. 2 color decals included. Windows for this kit are printed on the decal sheet.
KIT LIST PRICE $20.00 OUT OF STOCK-INDEFINITELY

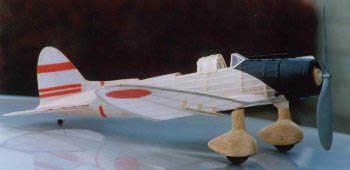

KIT # 18. MITSUBISHI A6M2 ZERO

####KIT # 18. MITSUBISHI A6M2 ZERO. WW2 Japanese fighter plane. 1/24 scale, about 18” span, from the Model Builder Book “Flying Scale Models of WW2” from the 1970’s. Contains 2 color decals.
KIT LIST PRICE $30.95--OUT OF STOCK INDEFINITELY

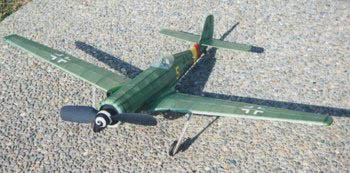

KIT # 19. FOCKE-WULF TA-152H

####KIT # 19. FOCKE-WULF TA-152H. WW2 German fighter plane, late long wing development of the FW-190D-9. 1/24 scale, 23-11/16” span, from the Model Builder Book Flying Scale Models of WW2. Contains 2 color decals.
KIT LIST PRICE $30.95--OUT OF STOCK INDEFINITELY

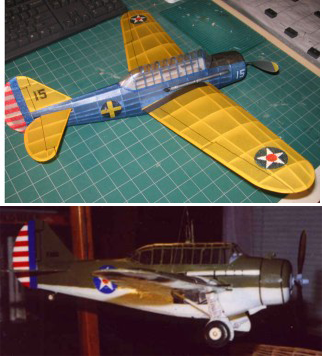

KIT # 20. NORTH AMERICAN O-47

KIT # 20. NORTH AMERICAN O-47. Mid-1930’s to WW2 monoplane US Army observation plane. This is from plan #35 and is in 1/24 scale, 23-1/8 span. Contains 4 color decals for several aircraft.
KIT LIST PRICE $32.95---ONLY 3 KITS LEFT AND THEN IT WILL BE OUT OF STOCK INDEFINITELY!!!

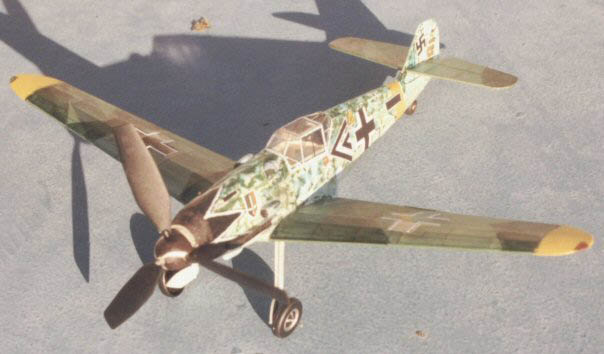

KIT # 21. MESSERSCHMITT Bf-109E

#### KIT # 21. MESSERSCHMITT Bf-109E. WW2 German fighter from the battle of Britain. This kit is from the Model Builder Book Flying Scale Models of WW2. Contains 2 color decals.
KIT LIST PRICE $30.95----OUT OF STOCK INDEFINITELY!!!

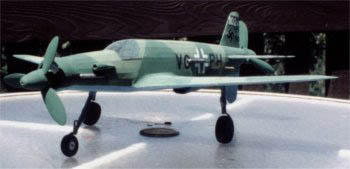

KIT # 22. DORNIER Do 335 PFEIL (ARROW)

####KIT # 22. DORNIER Do 335 PFEIL (ARROW). WW2 German heavy fighter. This twin engine fighter (in push-pull configuration) was introduced late in WW2 and saw only limited use before the war ended. The model is in 1/24 scale, 22-9/16” span. Since both motors are in the fuselage both motors are designed to be powered. this complete kit includes 2 sets of propeller hardware. It includes 2 color decals,
KIT LIST PRICE $41.95---OUT OF STOCK-INDEFINITELY!!!

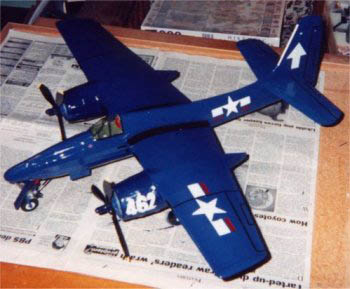

KIT # 23. GRUMMAN F7F TIGERCAT

####KIT # 23. GRUMMAN F7F TIGERCAT. Late WW2 and Korean War US Navy twin engine fighter plane, 1/24 scale, 25.75 span, from plan #36. Designed for rubber power for both engines. Contains 2 sets of propeller hardware, and 2 color decals..
KIT LIST PRICE $42.95--OUT OF STOCK INDEFINITELY

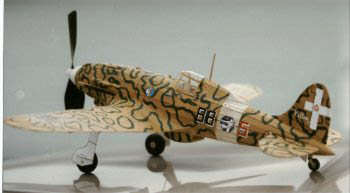

KIT # 24. MACCHI C.202 FOLGORE

####KIT # 24. MACCHI C.202 FOLGORE. WW2 Italian fighter plane, 1/24 scale, 17.7” span, from plan #24. Designed for rubber power. The kit includes 4 color decals.
KIT LIST PRICE $31.95 OUT OF STOCK INDEFINITELY!

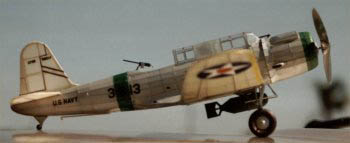

KIT # 25. VOUGHT SB2U VINDICATOR

####KIT # 25. VOUGHT SB2U VINDICATOR. WW2 U.S. Navy Dive Bomber, 1/24 scale, 21” span. Although obsolete at the start of the way it was used at the battle of Miday and also served aboard the Ranger in the Atlantic. 4 color decals covering several aircraft are included.
REPLACED BY LASER CUT KIT #25-LC. SEE LASER KIT LISTING.

KIT # 26. CURTISS BF2C-1 (HAWK III)

####KIT # 26. CURTISS BF2C-1 (HAWK III). 1935 U.S. Navy Fighter Bomber and export fighter, 1/24 scale, 15.8 inch span. The plane was flown briefly by the Navy and flew in China against the Japanese. 5 color decals for both US Navy and Chinese Hawk III versions are included.
OUT OF STOCK INDEFINITELY. WILL BE REPLACED BY A LASER CUT KIT IN LATE 2016 OR EARLY 2017.

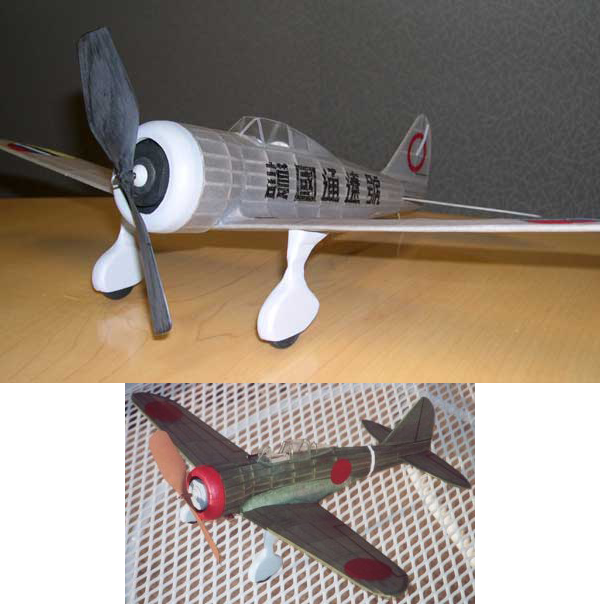

KIT # 27. NAKAJIMA KI-27 NATE

#####KIT # 27. NAKAJIMA KI-27 “NATE”. Late 1930’s and WW2 Japanese Army Air Force fighter, 1/24 scale, 18.56” span. The kit includes 1 color decals. This plane was used by the Japanese in the late 1930's against China and continued in use early against the Americans until gradually replaced by later aircraft.
KIT LIST PRICE $30.95--OUT OF STOCK INDEFINITELY. WILL BE REPLACED BY A LASER CUT KIT IN LATE 2016 OR EARLY 2017.

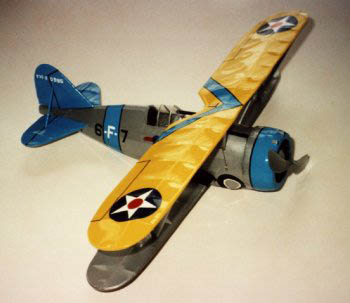

KIT # 28. GRUMMAN F3F-2

####KIT # 28. GRUMMAN F3F-2. Late 1930’s U.S. Navy Biplane Fighter. The Gulfhawk version is also shown and the parts provided may build either version. 1/24 scale, 16 inch span. The includes 4 color decals for both versions.
REPLACED BY LASER CUT KIT #28-LC. SEE LASER KIT LISTING.

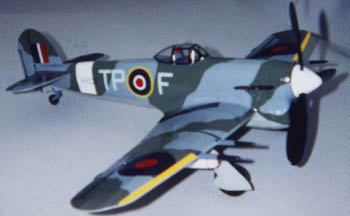

KIT # 29. HAWKER TYPHOON IB

#### KIT # 29. HAWKER TYPHOON IB. WW2 British Fighter and Attack plane. 1/24 scale, 21.79” span. The kit includes 5 color decals.
KIT LIST PRICE $35.95-----REPLACED BY A LASER CUT KIT. SEE LASER KIT LISTING.

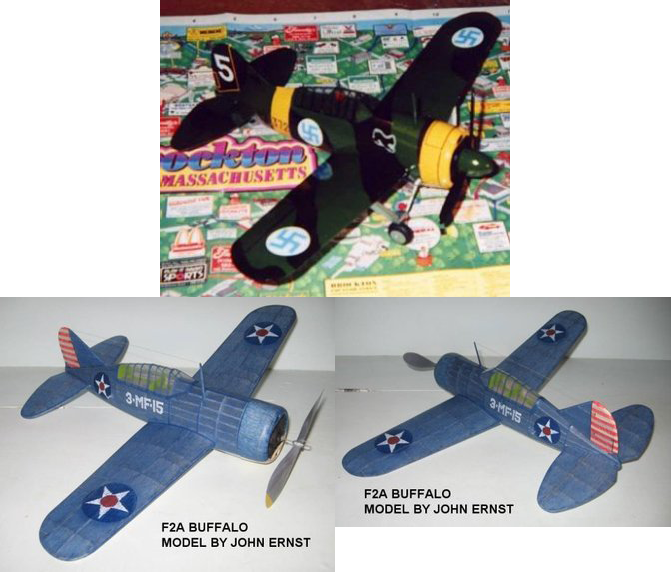

KIT # 30. BREWSTER F2A BUFFALO

####KIT # 30. BREWSTER F2A BUFFALO. PRE-WAR & WW2 US Navy, British, and Finnish Fighter. 1/24 scale, 17.5” span. The kit includes 6 color decals (3 Countries, British, Finnish, US Navy). Plans show all major versions, F2A-2,-3, B-239, & B-339.
KIT LIST PRICE $32.95 OUT OF STOCK INDEFINITELY.

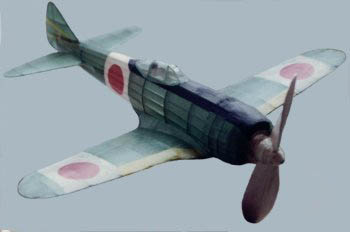

KIT # 31. NAKAJIMA Ki-43 OSCAR

####KIT # 31. NAKAJIMA Ki-43 OSCAR. WW2 JAPANESE ARMY AIR FORCE Fighter. 1/24 scale, 18.87” span. All major versions, Mk-I, Mk-II, & Mk-III are shown on the plans. The kit includes 2 color decals, and 2 different canopies covering all three major versions.
KIT LIST PRICE $32.95---OUT OF STOCK-HAS BEEN REPLACED BY A LASER CUT KIT #31-LC.

KIT # 32. CONSOLIDATED TBY-2 SEAWOLF

KIT # 32. CONSOLIDATED TBY-2 SEAWOLF. WW2 U.S. NAVY TORPEDO BOMBER. 1/24 scale, 28.47” span. 180 were built but war ended before they could see action. The kit includes 4 color decals.
KIT LIST PRICE $39.95---ONLY 4 KITS LEFT AND THEN IT WILL BE OUT OF STOCK INDEFINITELY!!!

KIT # 33. AICHI B7A-2 RYUSEI “GRACE

####KIT # 33. AICHI B7A-2 RYUSEI “GRACE”. WW2 JAPANESE NAVY ATTACK BOMBER. 1/24 scale, 23.63” span. This fine attack bomber came a little to late to have an impact on the outcome of the war. The kit includes 3 color decals.
KIT LIST PRICE $35.95 OUT OF STOCK INDEFINITELY-WILL BE REPLACED BY A LASER CUT KIT BY FALL 2017.

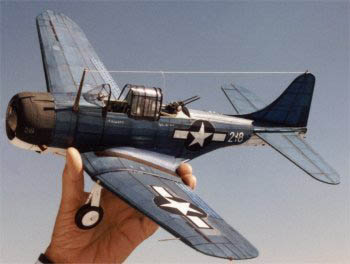

KIT # 34. DOUGLAS SBD-3/5 DAUNTLESS

***KIT # 34. DOUGLAS SBD-3/5 DAUNTLESS. WW2 U.S. NAVY AND MARINE DIVE BOMBER. 1/24 scale, 20.77” span. Famous for sinking 4 Japanese aircraft carriers at Midway. The kit includes 4 color decals. I decal sheet shows perforations for dive flaps.
REPLACED BY LASER CUT KIT #34-LC. SEE LASER KIT LISTING.

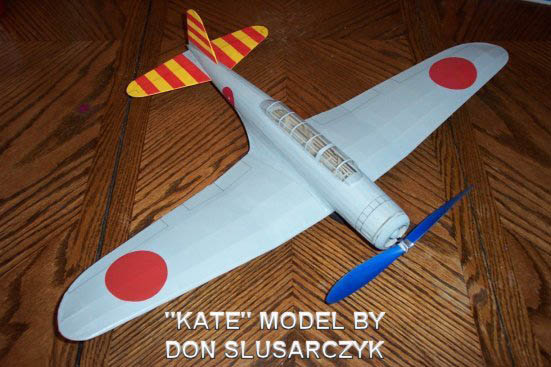

KIT # 35. NAKAJIMA B5N2 “KATE

#### KIT # 35. NAKAJIMA B5N2 “KATE”. WW2 JAPANESE NAVY ATTACK/TORPEDO BOMBER. 1/24 scale, 25.46” span. This was the first line attack/torpedo bomber for the IJNAF at the beginning of the war.
REPLACED BY LASER CUT KIT #35-LC. SEE LASER KIT LISTING.

KIT # 36. BELL P-39 AIRACOBRA

####KIT # 36. BELL P-39 AIRACOBRA. WW2 U.S. ARMY AIR FORCE AND RUSSIAN FIGHTER 1/24 scale, 17” span. Used in the Pacific theater in early WW2. The 3 color decals for USA and Russian markings.
REPLACED BY LASER CUT KIT #36-LC. SEE LASER KIT LISTING.

KIT # 37. NAKAJIMA Ki-44 TOJO

####KIT # 37. NAKAJIMA Ki-44 “TOJO”. WW2 JAPANESE ARMY AIR FORCE FIGHTER. 1/24 scale, 15.5” span. Designed as a high speed interceptor. The 1 color stick on decals.
REPLACED BY LASER CUT KIT #37-LC. SEE LASER KIT LISTING.

KIT # 38. GRUMMAN TBF/TBM AVENGER

####KIT # 38. GRUMMAN TBF/TBM AVENGER. WW2 US NAVY TORPEDO BOMBER. Became the best torpedo bomber of the war. 1/24 scale, 27.08" span. Build any version from the TBF-1 through TBM-3E. The kit includes 4 color decals, and turned foam wheels,and molded plastic canopy, turret, and tunnel gun position.
KIT LIST PRICE $39.95--OUT OF STOCK. WILL BE REPLACED BY A LASER CUT KIT IN FALL OF 2016!!!

KIT # 39. AICHI D3A1/2 VAL WW2 JAPANESE NAVY DIVE-BOMBER

####KIT # 39. AICHI D3A1/2 "VAL" WW2 JAPANESE NAVY DIVE-BOMBER. The Val was the Japanese Navy's front line dive-bomber at the beginning of WW2. Build either version from the kit. 1/24 scale, with a 23.85” wingspan. Based on an original design by Nate Sturman. The kit includes 2 color decals and molded plastic canopy with extension for D3A2 version.
REPLACED BY LASER CUT KIT #39-LC. SEE LASER KIT LISTING.

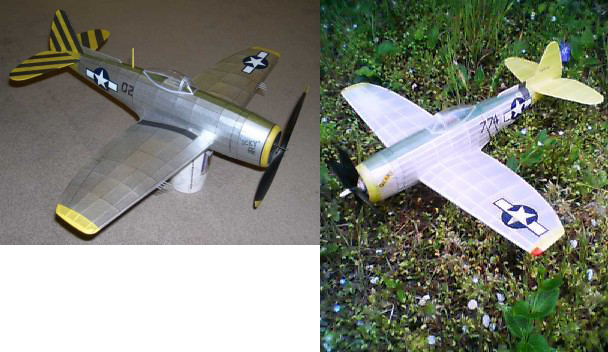

KIT #40 THE REPUBLIC P-47 THUNDERBOLT WW2 U.S. AIR FORCE FIGHTER. BUILD ANY ONE OF 3 DIFFERENT VERSIONS FROM THE KIT

####KIT #40 THE REPUBLIC P-47 “THUNDERBOLT” WW2 U.S. AIR FORCE FIGHTER. BUILD ANY ONE OF 3 DIFFERENT VERSIONS FROM THE KIT The kit provides materials to build any one of 3 versions, the P-47D, both razorback and bubble top, or the P-47N. The P-47, affectionately nicknamed "Jug," the P-47 was one of the most famous AAF fighter planes of WW II. Used as both a high-altitude escort fighter and a low- level fighter-bomber, the P-47 quickly gained a reputation for ruggedness. It was the heaviest single engine fighter of the war. Our model is in 1/24 scale having a wingspan of 20.39” for the P-47D versions and 21.28" for the N version. The kit will build into any 1 of 3 versions, the P-47D razorback or bubble top and the P-47N. It can be readily converted to any of the latter types if the builder wants to. The kit includes all 2 color decals, and molded plastic canopies for razorback and bubble top versions.
KIT LIST PRICE $35.95----OUT OF STOCK. REPLACED BY LASER KIT # 40-LC. SEE LASER KIT LISTING.

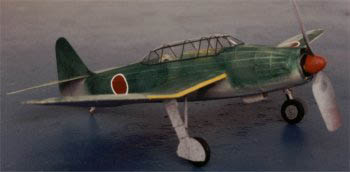

KIT #41 THE MITSUBISHI J2M3 RAIDEN (THUNDERBOLT), OR JACK, WW2 JAPANESE LAND BASED NAVY FIGHTER

#### KIT #41 THE MITSUBISHI J2M3 “RAIDEN” (THUNDERBOLT), OR “JACK”, WW2 JAPANESE LAND BASED NAVY FIGHTER The Mitsubishi J2M3 Raiden, or Thunderbolt in English, code named “Jack” by the allies, was the first Japanese naval fighter specifically designed for the land-based interception role. Some examples of the Raiden fought briefly in the Philippines in September 1944. Most were retained for home defense. When flown by experienced pilots, the Jack was preferred over all other day fighters as a B-29 killer. Its armament was powerful enough to destroy a B-29 and as long as its primary opponent was unescorted B-29s, the Jack was superb for the job. Our model of the Jack is the J3M3 version of which 160 were built. It is in 1/24 scale, with a 17.71” wingspan.
REPLACED BY LASER CUT KIT #41-LC. SEE LASER KIT LISTING.

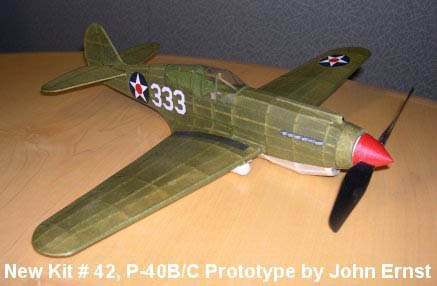

KIT # 42 CURTISS P-40B/C WARHAWK

####KIT # 42 CURTISS P-40B/C WARHAWK. The P-40B/C was the Army Air Corps frontline fighter when the U.S. entered WW2. Although obsolete compared to the Zero, Me-109, or Spitfire it was used effectively by the A. V. G. and British early in the war. It was used by the British as the Tomahawk IIA or IIB. Our model is in 1/24 scale with a wingspan of 18.45". The kit includes 4 color decals for U.S. Army version.
KIT LIST PRICE $32.95-----OUT OF STOCK. REPLACED BY LASER KIT # 42-LC. SEE LASER KIT LISTING.

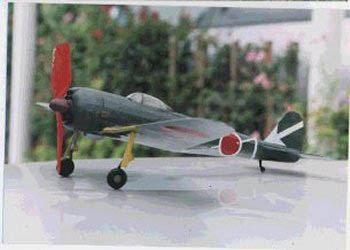

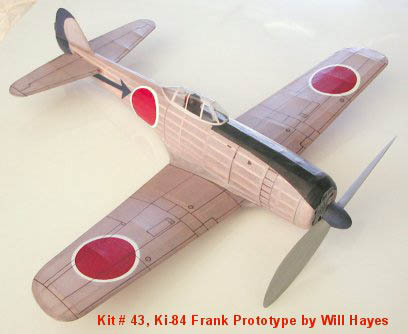

KIT # 43 NAKAJIMA Ki-84 FRANK

####KIT # 43 NAKAJIMA Ki-84 FRANK. The Ki-84, Hayate (Hurricane), code named Frank was generally regarded as the best Japanese Army fighter of WW2. A captured Ki-84-1a was to out climb and out maneuve a P-47 and a P-51. The first batches were sent to China, where the 22nd Sentai, when equipped with the new fighter, was able to fly rings around Chennault's 14th Air Force. The 22nd Sentai later moved to the Philippines, where problems overtook them, with many accidents and shorages and extremely poor serviceability. Our model is in 1/24 scale with a wingspan of 18.45". The kit includes 2 color decals.
KIT LIST PRICE $32.95---OUT OF STOCK. REPLACED BY A LASER CUT KIT.

KIT # 44 THE CURTISS SB2C-4 HELLDIVER

####KIT # 44 THE CURTISS SB2C-4 HELLDIVER. The SB2C Helldiver was designed as a replacement for the Douglas SBD Dauntless. The original prototype flew in December 1940. Many teething problems delayed production until June 1942 when the first SB2C-1 was finished. SB2C-1C’s followed entering combat in November 1943 from the Carrier Bunker Hill. Other versions were A-25’s for the Army, SB2C- 3’s, SB2C-4’s, and finally the SB2C-5. Although our model is specifically the SB2C-4, any of the SB2C versions can be made from the kit with minor modifications using references sited on the drawings. Our model is in 1/24 scale having a wingspan of 24.88”. The kit includes 2 sheets of color decals. One sheet includes red centered perforated dive flap details.
KIT LIST PRICE $39.95 --OUT OF STOCK. REPLACED BY LASER CUT KIT.

KIT # 45 THE MITSUBISHI Ki-30 ANN

####KIT # 45 THE MITSUBISHI Ki-30 ANN. The Ann served in many of the bomber units in China. Some were encountered in the early Philippine campaigns in support of the Japanese Army’s occupation of the Philippines. In early 1942 surviving aircraft of this type were relegated to training units. A few Anns were used by the Royal Thai Air Force against the French. Total production was just over 700 aircraft between 1937 and 1941.Our model is in 1/24 scale, with a 23.89” wingspan. Our design is modified from Nate Sturman’s original design based on new reference information and modifications for kitting. The kit includes 1 color decals.
KIT LIST PRICE $37.95---OUT OF STOCK. REPLACED BY A LASER CUT KIT.

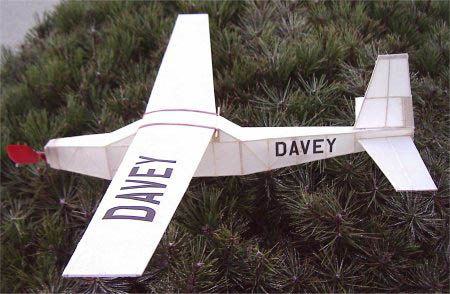

KIT # NS-1. DAVEY FUN FLYER

NON-SCALE KITS NOW AVAILABLE: KIT # NS-1. DAVEY FUN FLYER. High wing cabin model designed with box construction. This model is for fun flying and makes an excellent intermediate stick model. The model has a 28.1 inch wingspan. This kit does not have any canopy or decals. Model in picture by Dave Diels
KIT LIST PRICE $18.00
